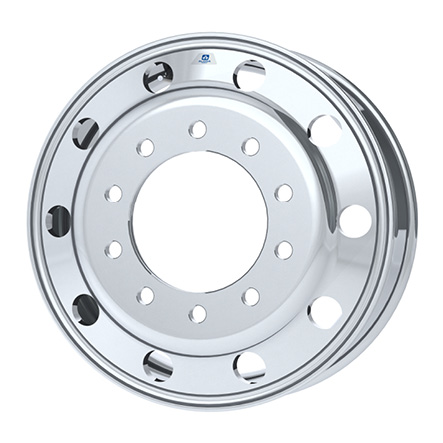

87360x
22.5" x 7.5" - Hub Pilot - 285.75mm Bolt Circle
The latest in advanced innovation, manufacturing and engineering on the road. Ideal for heavy-duty truck, trailer, and motorhome applications.
| Specifications | Measurement |
| Product Part Number | 87360x |
| Wheel Size (in) | 22.5" x 7.5" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (lbs) | 53 lbs |
| Outset (in) | 6.28" |
| Inset (in) | 5.44" |
| Max Load (lbs) | 7300 lbs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR555D |
| Part Number | Finish |
| 873607 | High Polish |
| Accessories and Mounting Hardware | Part Number |
| Front Hub Cover (Includes Nut Covers Where Applicable) |
076188, 0761851, 088100S |
| Rear Hub Cover (Includes Nut Covers Where Applicable) |
077188, 0771851, 089100S |
| Nut Cover Only (Not Intended to Secure Hub Covers) |
001811 |
| Alcoa® Mounting Hardware Kits | - |
0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information
See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
