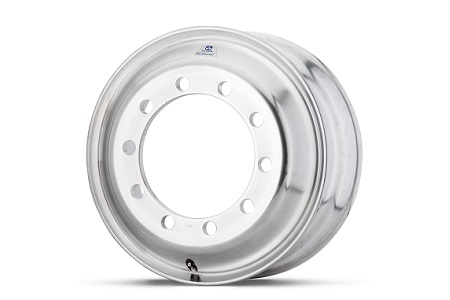

Alcoa® Wheel 8925xx
22.5x9.00, 154 Offset (mm) For Bus, Trailer, and Truck
WorkHorse® wheel 896570 without handholes, max. load 4335 kg, weight 26.7 kg
| Wheel Size | 22.5x9.00 |
| Maximum load (kg) | 4125 |
| Offset (mm) | 154 |
| Part Number | Bolthole diameter (mm) | Weight (kg) |
| 89251X | 32 | 23.5 |
| 89252X | 26 | 23.7 |
Click here for the specification sheet.
| Alcoa Wheel Part Number | bolt hole Ø in mm | Surface finish / treatment |
| 892510 | 32 | Brushed |
| 892513DB | 32 | Dura-Bright® |
| 892517 | 32 | LvL ONE® |
| 892520 | 26 | Brushed |
| 892520DF | 26 | Dura-Flange® |
| 892523DB | 26 | Dura-Bright® |
| 892527 | 26 | LvL ONE® |
| 896570 | 32 | Brushed |
-
