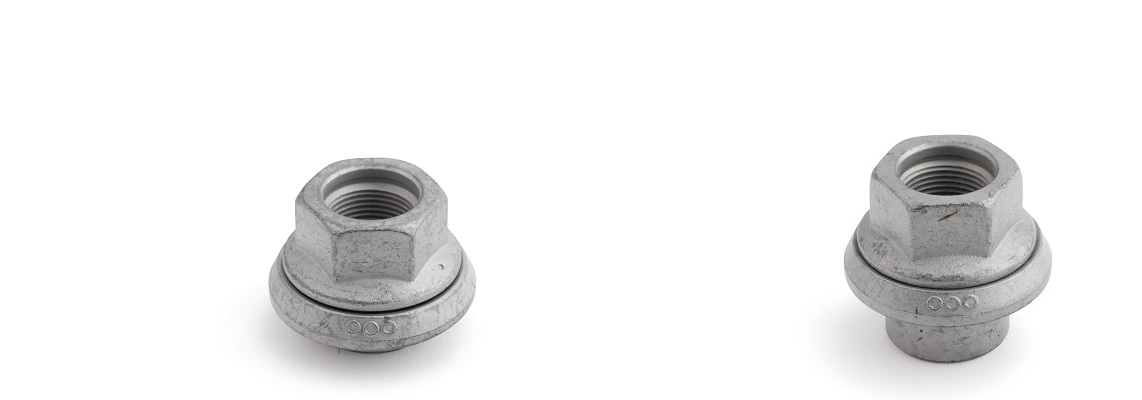

Sleeved wheel nuts
High quality short and long sleeved wheel nuts for mounting Alcoa® wheels. Available for Metric, UNF and BSF fitment.
M18 x 1.5 – short for ø bolt holes 26 mm
M18 x 1.5 – long for ø bolt holes 26 mm
M20 x 1.5 – short for ø bolt holes 30mm
M20 x 1.5 – long for ø bolt holes 30mm
M22x 1.5 – short for ø bolt holes 32mm
M22 x 1.5 – long for ø bolt holes 32mm
Volvo short 7/8” – 14 UNF for ø bolt holes 32mm
Volvo long 7/8” – 14 UNF for ø bolt holes 32mm
Scania short 7/8” – 11 BSF for ø bolt holes 32mm
Scania long 7/8” – 11 BSF for ø bolt holes 32mm
Valves
All Alcoa® wheels are mounted with nickel plated valves. The nickel coating and special black T-shape grommet reduce (galvanic) corrosion. Available in different sizes and angles.
Consult the Product Information Valve chart for more details on older wheels.

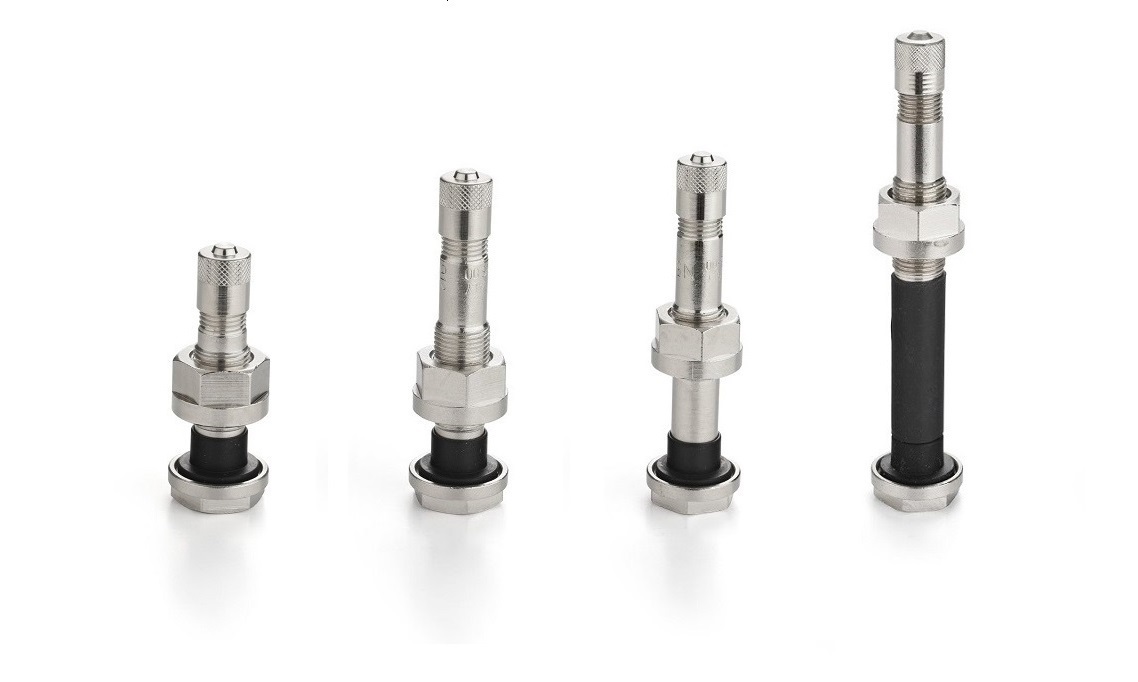

straight nickel plated valve length 40mm
straight nickel plated valve length 54mm
straight nickel plated valve length 60mm
straight nickel plated valve length 83mm (Workhorse® Wheels)

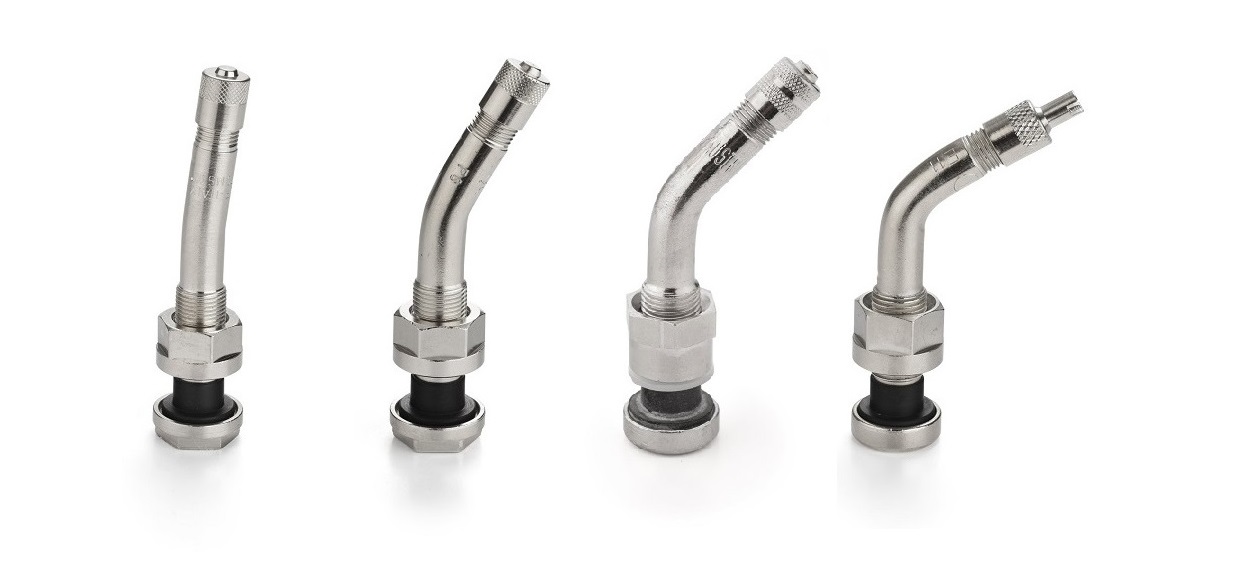

nickel plated valve with 7° angle
nickel plated valve with 27° angle
nickel plated valve with 45° angle
nickel plated valve with 60° angle
TPMS* compatible valves for Alcoa® wheels
Nickel plated TPMS compatible valves for Alcoa® wheels for tyre pressure monitoring system hosting Sensata TPMS sensor Generation 1 and/or Generation 2.
Valve TPMS40
Valve TPMS54
Valve TPMS70

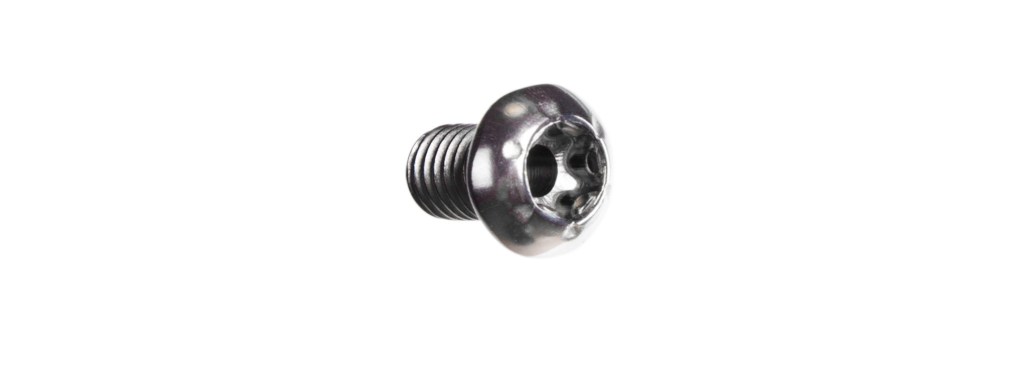

Fitting screws for Sensata TPMS modules:
Fitting screw compatible with Sensata Generation1 TPMS module
Fitting screw compatible with Sensata Generation2 TPMS module
For identifying proper type of TPMS valve for Alcoa® wheels and proper screw for Sensata module visit TPMS Valve Selector

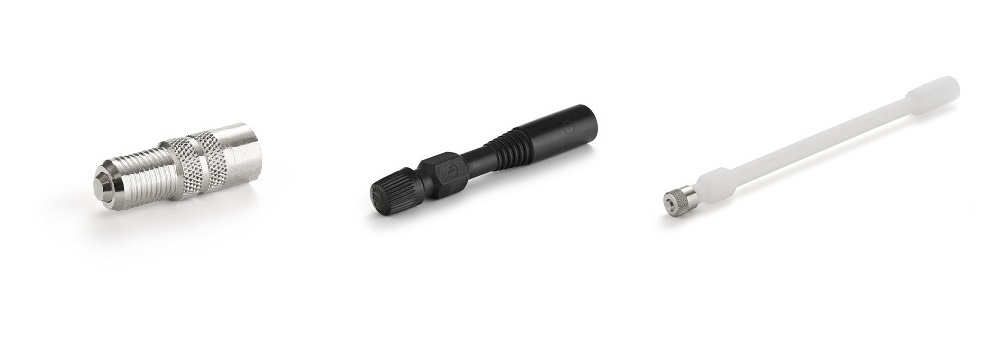

Valve extensions
Nickel plated and plastic valve extensions which enable tyre pressure checks. Available in 20, 70 and 150 mm.
20mm nickel plated valve extension
70mm POM plastic valve extension
150mm POM plastic valve extension
