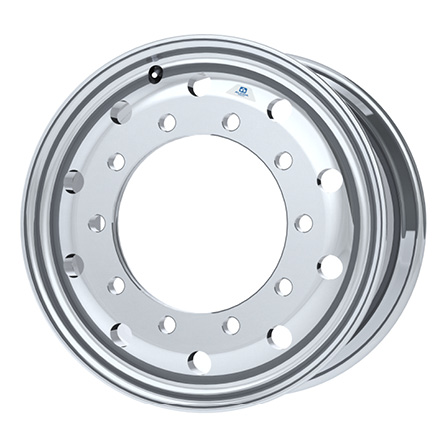

22.5" x 13" - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 83358x
Wheel Size (in) 22.5" x 13"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 26mm
Hub Bore 281.2mm
Approx. Weight (kgs) 34 kgs
Outset (mm) N/A mm
Inset (mm) 155.448 mm
Max Load (kgs) 5806 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553
Part Number Finish
833580DB Brushed with Dura-Bright
833581 Mirror Polish Outside Only
833581DB Mirror Polish Outside Only with Dura-Bright
833587 LvL ONE
