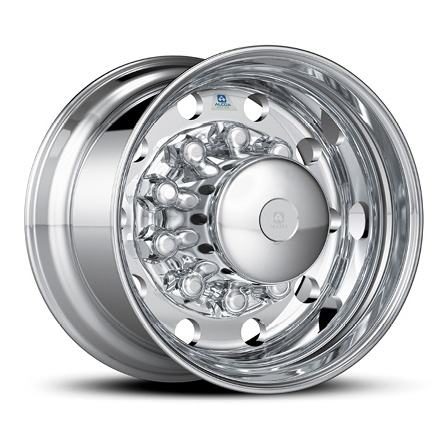

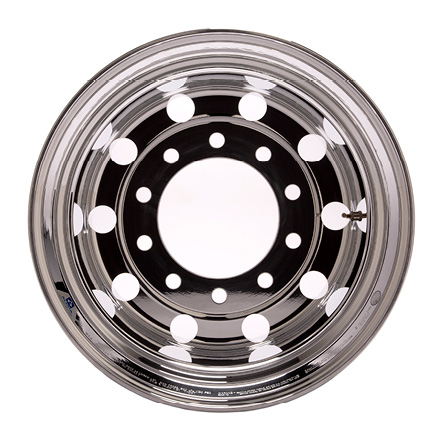

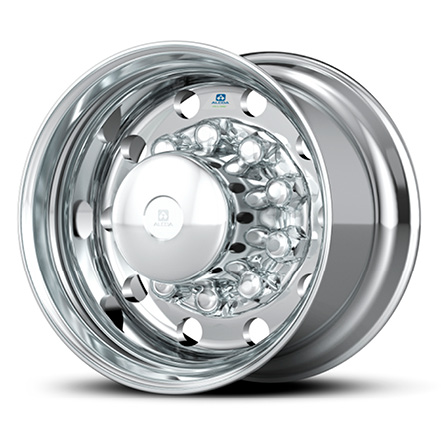

22.5" x 14" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 84U64x
Wheel Size (in) 22.5" x 14"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 22 kgs
Outset (mm) 50.8 mm
Inset (mm) N/A mm
Max Load (kgs) 5806 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553E
Part Number Finish
84U642 Mirror Polish Inside Only
84U647 LvL ONE
84U64BLK Dura-Black
84U642DB Mirror Polish Inside Only with Dura-Bright

See our Warranty page for more information

Availability of the product may vary; please check with our team.
