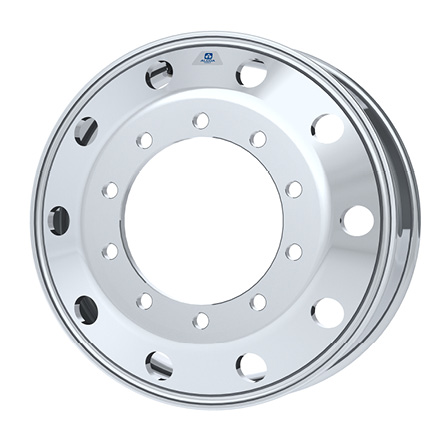

24.5" x 8.25" - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 98350x
Wheel Size (in) 24.5" x 8.25"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 26mm
Hub Bore 281.2mm
Approx. Weight (kgs) 28 kgs
Outset (mm) 172.466 mm
Inset (mm) 147.574 mm
Max Load (kgs) 3855 kgs
Max Cold Infl. (psi) 132 psi
Valve Stem TR554D
Part Number Finish
983507 LvL ONE
