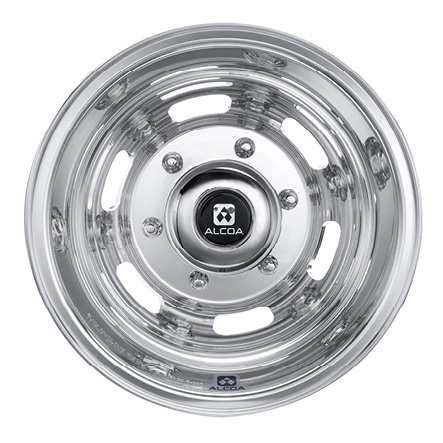

16" x 5.5J" - Hub Pilot - 205mm Bolt Circle
Specifications Measurement
Product Part Number 25180x
Wheel Size (in) 16" x 5.5J"
Mounting System Hub Pilot
Bolt Holes 6
Bolt Circle 205mm
Bolt Hole Diameter 16mm
Hub Bore 161.1mm
Approx. Weight (kgs) 7 kgs
Outset (mm) 125.476 mm
Inset (mm) 116.332 mm
Max Load (kgs) 1061 kgs
Max Cold Infl. (psi) 80 psi
Valve Stem 54MS00
Part Number Finish
251800 Brushed
251801 Mirror Polish Outside Only
251801DB Mirror Polish Outside Only with Dura-Bright
251802 Mirror Polish Inside Only
251802DB Mirror Polish Inside Only with Dura-Bright

See our Warranty page for more information

Availability of the product may vary; please check with our team.
