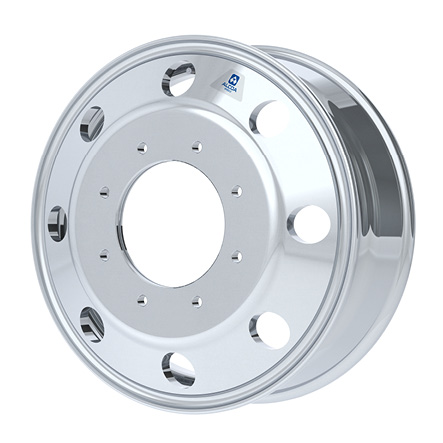

76380x
19.5" x 6" - Hub Pilot - 225mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 76380x |
| Wheel Size (in) | 19.5" x 6" |
| Mounting System | Hub Pilot |
| Bolt Holes | 8 |
| Bolt Circle | 225mm |
| Bolt Hole Diameter | 15mm |
| Hub Bore | 170.3mm |
| Approx. Weight (kgs) | 15 kgs |
| Outset (mm) | 135.89 mm |
| Inset (mm) | 118.11 mm |
| Max Load (kgs) | 1701 kgs |
| Max Cold Infl. (psi) | 110 psi |
| Valve Stem | TR553C |
| Part Number | Finish |
| 763801 | Mirror Polish Outside Only |
| 763802 | Mirror Polish Inside Only |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
