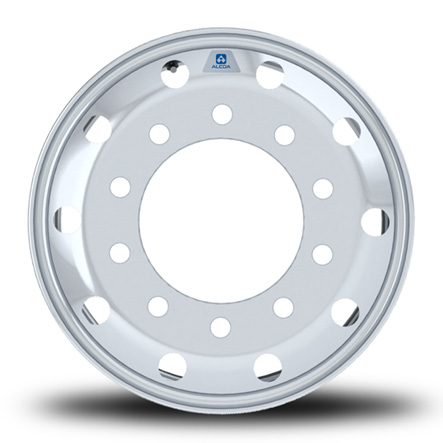

19.5" x 7.5RW" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 77362x
Wheel Size (in) 19.5" x 7.5RW"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 17 kgs
Outset (mm) 154.94 mm
Inset (mm) 132.842 mm
Max Load (kgs) 3039 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553C
Part Number Finish
773621 Mirror Polish Outside Only
773621DB Mirror Polish Outside Only with Dura-Bright
773622 Mirror Polish Inside Only
773622DB Mirror Polish Inside Only with Dura-Bright
773627 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
