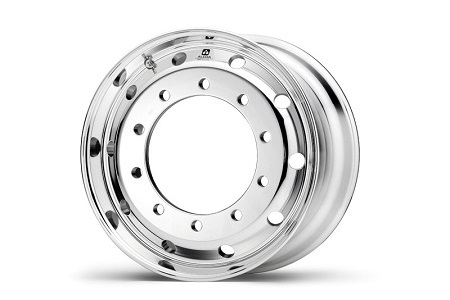

22.5x11.75 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 81451X|81452X
Wheel Size (in) 22.5x11.75
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32|26mm
Hub Bore 281mm
Approx. Weight (kgs) 25.8|26.0 kgs
Outset (mm) N/A mm
Inset (mm) 135.001 mm
Max Load (kgs) 5000 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 54MS-00
Part Number Finish
814510 Brushed
814511DB Dura-Bright
814517 LvL ONE
814520 Brushed
814520DF Dura-Flange
814521DB Dura-Bright
814527 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
