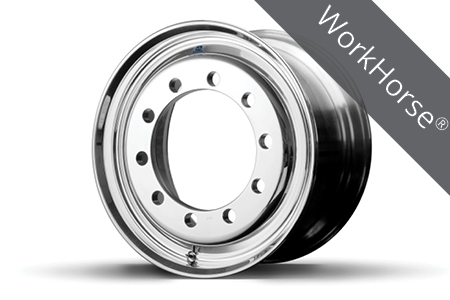

22.5x11.75 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 818570
Wheel Size (in) 22.5x11.75
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32mm
Hub Bore 281mm
Approx. Weight (kgs) 24.2 kgs
Outset (mm) N/AP mm
Inset (mm) 119.9896 mm
Max Load (kgs) 5000 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 40MS-00
Part Number Finish
818570 Brushed
