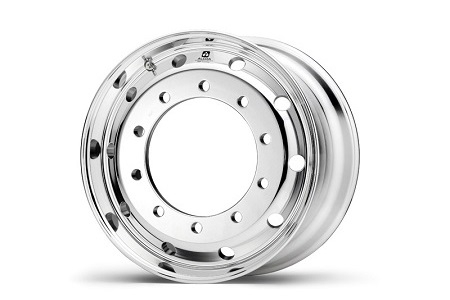

22.5x11.75 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 81855X|81856X
Wheel Size (in) 22.5x11.75
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32|26mm
Hub Bore 281mm
Approx. Weight (kgs) 24.8|25.0 kgs
Outset (mm) N/A mm
Inset (mm) 119.9896 mm
Max Load (kgs) 5000 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 54MS-00
Part Number Finish
818550 Brushed
818551DB Dura-Bright
818557 LvL ONE
818560 Brushed
818560DF Dura-Flange
818561DB Dura-Bright
818567 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
