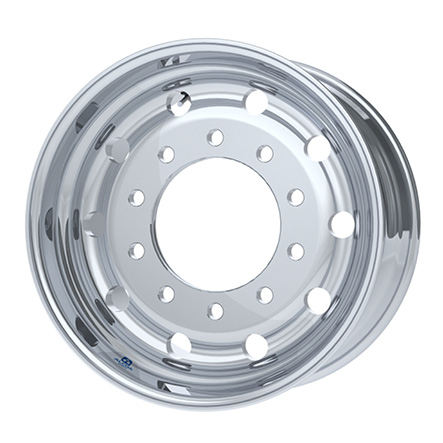

83U65x

22.5" x 13" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 83U65x
Wheel Size (in) 22.5" x 13"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 28 kgs
Outset (mm) 88.9 mm
Inset (mm) N/A mm
Max Load (kgs) 5897 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553E
Part Number Finish
83U652 Mirror Polish Inside Only
83U652DB Mirror Polish Inside Only with Dura-Bright
83U657 LvL ONE
83U658 LvL ONE
83U651DB Mirror Polish Outside Only with Dura-Bright

See our Warranty page for more information

Availability of the product may vary; please check with our team.
