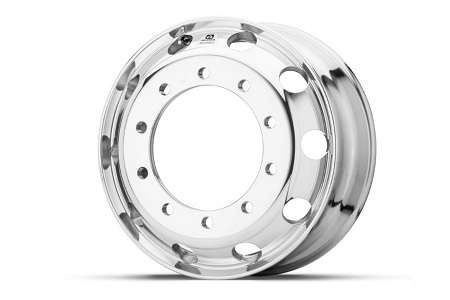

22.5x8.25 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 88251X|88252X
Wheel Size (in) 22.5x8.25
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32|26mm
Hub Bore 281mm
Approx. Weight (kgs) 23.1|23.2 kgs
Outset (mm) 167.64 mm
Inset (mm) 145.9 mm
Max Load (kgs) 3750 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 60MS-00
Part Number Finish
882513DB Dura-Bright
882517 LvL ONE
882523DB Dura-Bright
882527 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
