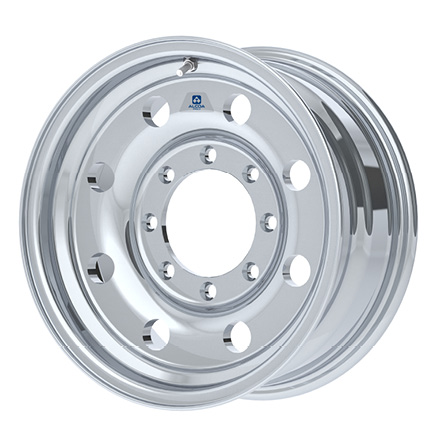

16" x 7" - Cone Seat - 6.5" Bolt Circle
Specifications Measurement
Product Part Number 16704x
Wheel Size (in) 16" x 7"
Mounting System Cone Seat
Bolt Holes 8
Bolt Circle 6.5"
Bolt Hole Diameter 0.62"
Hub Bore 5.16"
Approx. Weight (kgs) 9 kgs
Outset (mm) N/A mm
Inset (mm) 6.35 mm
Max Load (kgs) 1701 kgs
Max Cold Infl. (psi) 110 psi
Valve Stem TR416S
Part Number Finish
167041 Mirror Polish Outside Only

See our Warranty page for more information

Availability of the product may vary; please check with our team.
