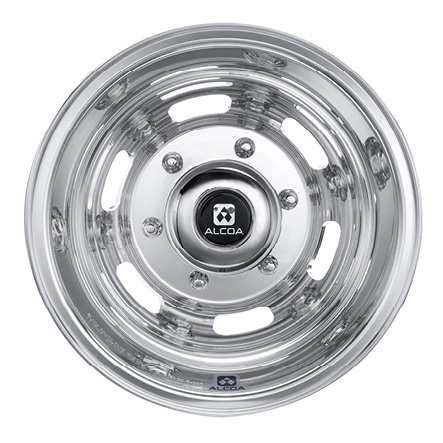

25180x
16" x 5.5J" - Hub Pilot - 205mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 25180x |
| Wheel Size (in) | 16" x 5.5J" |
| Mounting System | Hub Pilot |
| Bolt Holes | 6 |
| Bolt Circle | 205mm |
| Bolt Hole Diameter | 16mm |
| Hub Bore | 161.1mm |
| Approx. Weight (kgs) | 7 kgs |
| Outset (mm) | 125.476 mm |
| Inset (mm) | 116.332 mm |
| Max Load (kgs) | 1061 kgs |
| Max Cold Infl. (psi) | 80 psi |
| Valve Stem | 54MS00 |
| Part Number | Finish |
| 251800 | Brushed |
| 251801 | Mirror Polish Outside Only |
| 251801DB | Mirror Polish Outside Only with Dura-Bright |
| 251802 | Mirror Polish Inside Only |
| 251802DB | Mirror Polish Inside Only with Dura-Bright |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
