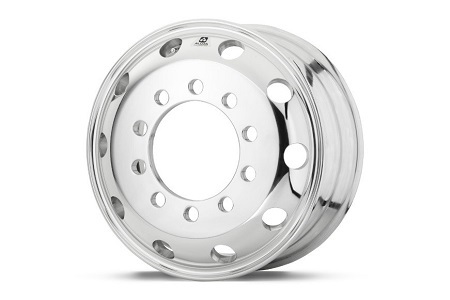

17.5x6.00 - Hub Pilot - 225mm Bolt Circle
Specifications Measurement
Product Part Number 663203
Wheel Size (in) 17.5x6.00
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 225mm
Bolt Hole Diameter 26mm
Hub Bore 176mm
Approx. Weight (kgs) 12.7 kgs
Outset (mm) 132.99 mm
Inset (mm) 113.9 mm
Max Load (kgs) 2500 kgs
Max Cold Infl. (psi) 141 psi
Valve Stem TR553D
Part Number Finish
663203 Mirror Polished

See our Warranty page for more information

Availability of the product may vary; please check with our team.
