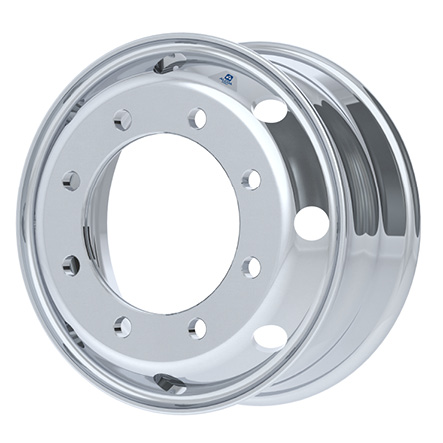

17.5" x 6.75" - Hub Pilot - 275mm Bolt Circle
Specifications Measurement
Product Part Number 66348x
Wheel Size (in) 17.5" x 6.75"
Mounting System Hub Pilot
Bolt Holes 8
Bolt Circle 275mm
Bolt Hole Diameter 24mm
Hub Bore 221.1mm
Approx. Weight (kgs) 12 kgs
Outset (mm) 140.97 mm
Inset (mm) 123.19 mm
Max Load (kgs) 2499 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553C
Part Number Finish
663480DB Brushed with Dura-Bright
663482 Mirror Polish Inside Only
663482DB Mirror Polish Inside Only with Dura-Bright
663487 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
