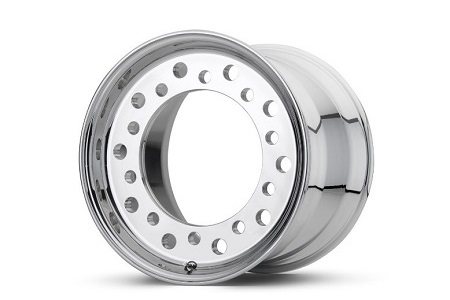

19.5x14.00 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 74852X
Wheel Size (in) 19.5x14.00
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 26mm
Hub Bore 281.2mm
Approx. Weight (kgs) 21.6 kgs
Outset (mm) N/A mm
Inset (mm) 120 mm
Max Load (kgs) 4500 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 60MS-00
Part Number Finish
748521DB Dura-Bright
748527 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
