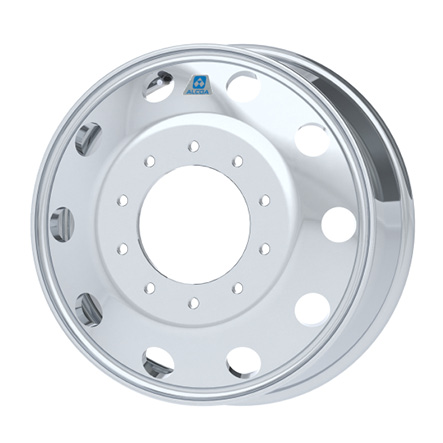

76329x

19.5" x 6" - Hub Pilot - 225mm Bolt Circle
Specifications Measurement
Product Part Number 76329x
Wheel Size (in) 19.5" x 6"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 225mm
Bolt Hole Diameter 15mm
Hub Bore 170.2mm
Approx. Weight (kgs) 12 kgs
Outset (mm) 135.89 mm
Inset (mm) 122.428 mm
Max Load (kgs) 1814 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553C
Part Number Finish
763291 Mirror Polish Outside Only
763291DB Mirror Polish Outside Only with Dura-Bright
763292 Mirror Polish Inside Only
763292DB Mirror Polish Inside Only with Dura-Bright
763297 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
