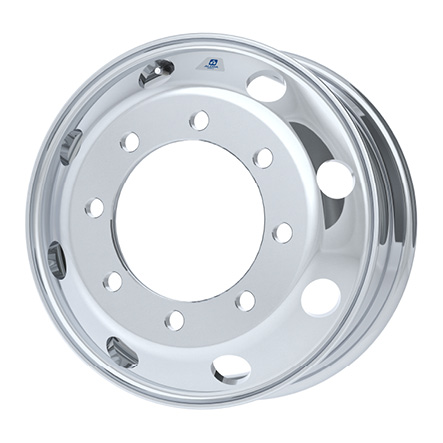

19.5" x 6.75RW" - Hub Pilot - 275mm Bolt Circle
Specifications Measurement
Product Part Number 76542x
Wheel Size (in) 19.5" x 6.75RW"
Mounting System Hub Pilot
Bolt Holes 8
Bolt Circle 275mm
Bolt Hole Diameter 26mm
Hub Bore 221.1mm
Approx. Weight (kgs) 14 kgs
Outset (mm) 140.97 mm
Inset (mm) 122.936 mm
Max Load (kgs) 2268 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553C
Part Number Finish
765421 Mirror Polish Outside Only
765421DB Mirror Polish Outside Only with Dura-Bright
765422 Mirror Polish Inside Only
765422DB Mirror Polish Inside Only with Dura-Bright
765427 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
