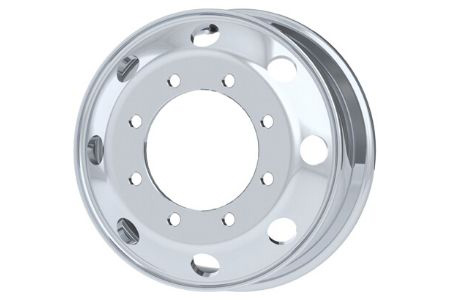

76547x
19.5x6.75 - Hub Pilot - 275mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 76547x |
| Wheel Size (in) | 19.5x6.75 |
| Mounting System | Hub Pilot |
| Bolt Holes | 8 |
| Bolt Circle | 275mm |
| Bolt Hole Diameter | 24mm |
| Hub Bore | 221mm |
| Approx. Weight (kgs) | 14.1 kgs |
| Outset (mm) | 140.9954 mm |
| Inset (mm) | 122.9868 mm |
| Max Load (kgs) | 2270 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR553C |
| Part Number | Finish |
| 765470 | Brushed |
| 765470DB | Dura-Bright |
| 765471 | Mirror Polished |
| 765471DB | Dura-Bright |
| 765472 | Mirror Polished |
| 765472DB | Dura-Bright |
| 765477 | LvL ONE |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
