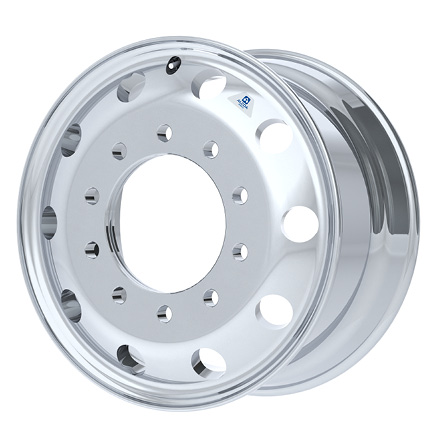

22.5" x 10.5" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 80360x
Wheel Size (in) 22.5" x 10.5"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 31 kgs
Outset (mm) N/A mm
Inset (mm) 139.7 mm
Max Load (kgs) 4763 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553
Part Number Finish
803601 Mirror Polish Outside Only
803601DB Mirror Polish Outside Only with Dura-Bright
