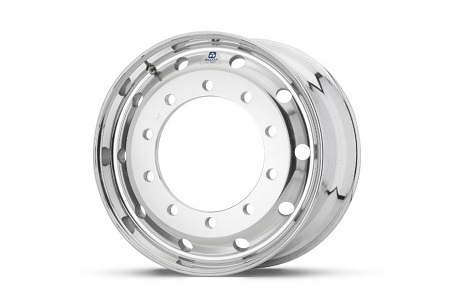

22.5x11.75 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 81151X|81152X
Wheel Size (in) 22.5x11.75
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32|26mm
Hub Bore 281mm
Approx. Weight (kgs) 23.3|23.5 kgs
Outset (mm) N/A mm
Inset (mm) 135.001 mm
Max Load (kgs) 4500 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 40MS-00
Part Number Finish
811510 Brushed
811511DB Dura-Bright
811511DD Dura-Bright and Dura-Flange
811517 LvL ONE
811520 Brushed
811521DB Dura-Bright
811527 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
