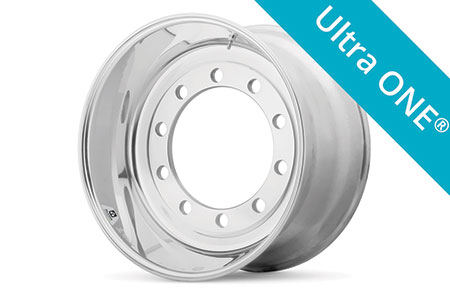

81U55x / 81U56x

22.5x11.75 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 81U55x|81U56x
Wheel Size (in) 22.5x11.75
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32|26mm
Hub Bore 281mm
Approx. Weight (kgs) 19.8|19.9 kgs
Outset (mm) N/AP mm
Inset (mm) 0 mm
Max Load (kgs) 5000 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 40MS-00
Part Number Finish
81U550 Brushed
81U552DB Dura-Bright
81U557 LvL ONE
81U560 Brushed
81U560DF Dura-Flange
81U562DB Dura-Bright
81U562DD Dura-Bright and Dura-Flange
81U567 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
