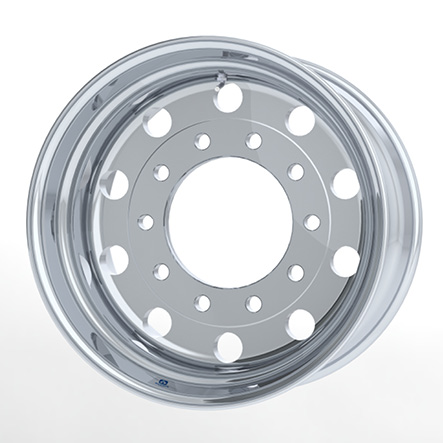

22.5" x 12.25" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 82262x
Wheel Size (in) 22.5" x 12.25"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 27 kgs
Outset (mm) 14.224 mm
Inset (mm) N/A mm
Max Load (kgs) 5579 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553E
Part Number Finish
822622 Mirror Polish Inside Only
822622DB Mirror Polish Inside Only with Dura-Bright
822627 LvL ONE
