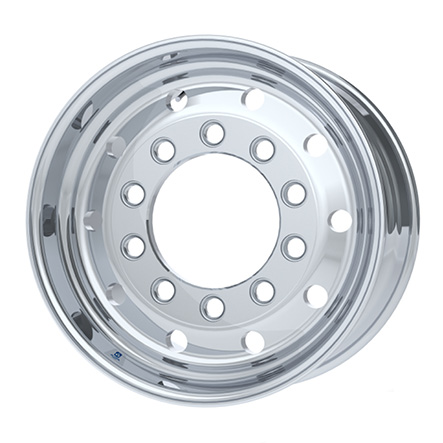

22.5" x 12.25" - Ball Seat - 11.25" Bolt Circle
Specifications Measurement
Product Part Number 82305x
Wheel Size (in) 22.5" x 12.25"
Mounting System Ball Seat
Bolt Holes 10
Bolt Circle 11.25"
Bolt Hole Diameter 1.18"
Hub Bore 8.72"
Approx. Weight (kgs) 29 kgs
Outset (mm) 98.552 mm
Inset (mm) N/A mm
Max Load (kgs) 5171 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553E
Part Number Finish
823057 LvL ONE
823058 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
