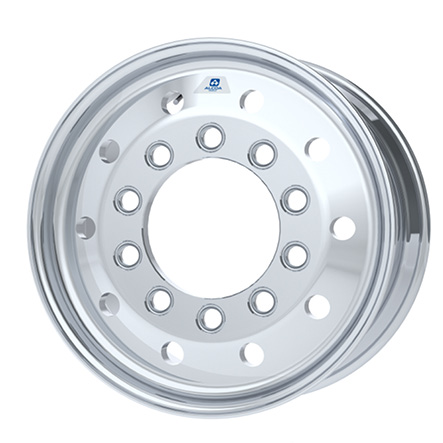

82306x
22.5" x 12.25" - Ball Seat - 11.25" Bolt Circle
| Specifications | Measurement |
| Product Part Number | 82306x |
| Wheel Size (in) | 22.5" x 12.25" |
| Mounting System | Ball Seat |
| Bolt Holes | 10 |
| Bolt Circle | 11.25" |
| Bolt Hole Diameter | 1.18" |
| Hub Bore | 8.72" |
| Approx. Weight (kgs) | 31 kgs |
| Outset (mm) | N/A mm |
| Inset (mm) | 118.872 mm |
| Max Load (kgs) | 4989 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR555E |
| Part Number | Finish |
| 823067 | LvL ONE |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
