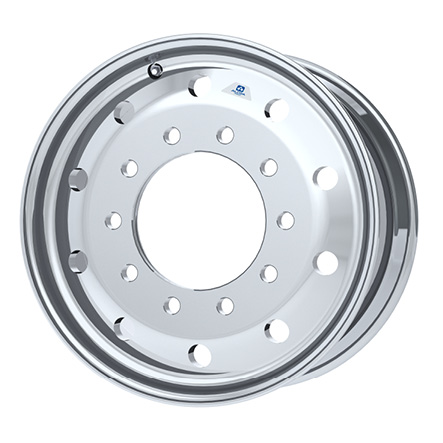

83462x

22.5" x 13" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 83462x
Wheel Size (in) 22.5" x 13"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 32 kgs
Outset (mm) N/A mm
Inset (mm) 134.62 mm
Max Load (kgs) 5806 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR552
Part Number Finish
834621 Mirror Polish Outside Only
834621DB Mirror Polish Outside Only with Dura-Bright
834627 LvL ONE
