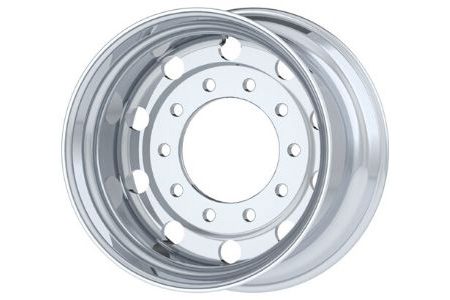

22.5x14.00 - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number 84362x
Wheel Size (in) 22.5x14.00
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 24.7 kgs
Outset (mm) 50.8 mm
Inset (mm) N/A mm
Max Load (kgs) 5805 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553E
Part Number Finish
843627 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
