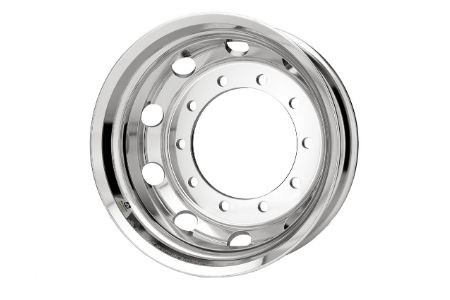

22.5x7.50 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 87451x
Wheel Size (in) 22.5x7.50
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32mm
Hub Bore 281mm
Approx. Weight (kgs) 23.8 kgs
Outset (mm) 159.99 mm
Inset (mm) 137.8 mm
Max Load (kgs) 3550 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 70MS-07
Part Number Finish
874510 Brushed
