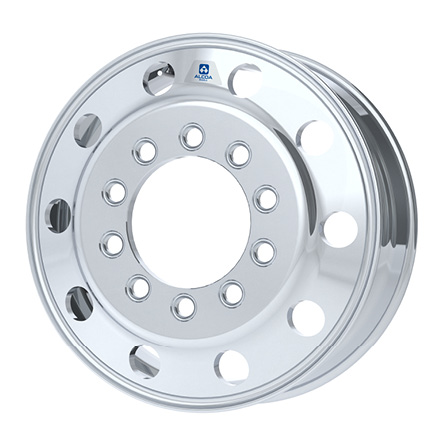

24.5" x 8.25" - Ball Seat - 11.25" Bolt Circle
Specifications Measurement
Product Part Number 98312x
Wheel Size (in) 24.5" x 8.25"
Mounting System Ball Seat
Bolt Holes 10
Bolt Circle 11.25"
Bolt Hole Diameter 1.18"
Hub Bore 8.72"
Approx. Weight (kgs) 27 kgs
Outset (mm) 167.64 mm
Inset (mm) 141.986 mm
Max Load (kgs) 3266 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem TR555D
Part Number Finish
983127 LvL ONE
