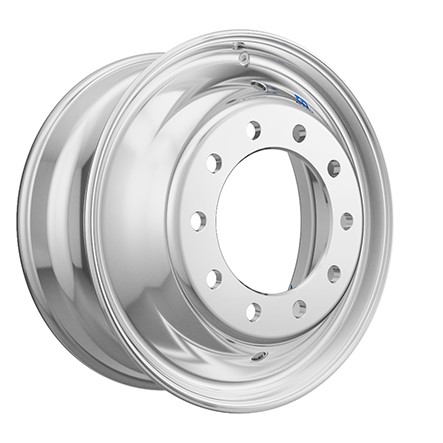

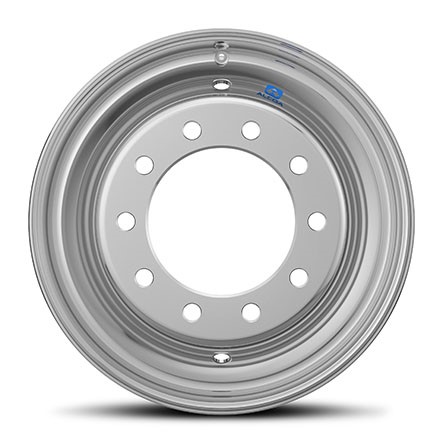

22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
Specifications Measurement
Product Part Number ULT36x
Wheel Size (in) 22.5" x 8.25"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (kgs) 16 kgs
Outset (mm) 167.64 mm
Inset (mm) 151.13 mm
Max Load (kgs) 3356 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem 60MS-00
Part Number Finish
ULT361 Mirror Polish Outside Only
ULT361DB Mirror Polish Outside Only with Dura-Bright
ULT362 Mirror Polish Inside Only
ULT362DB Mirror Polish Inside Only with Dura-Bright

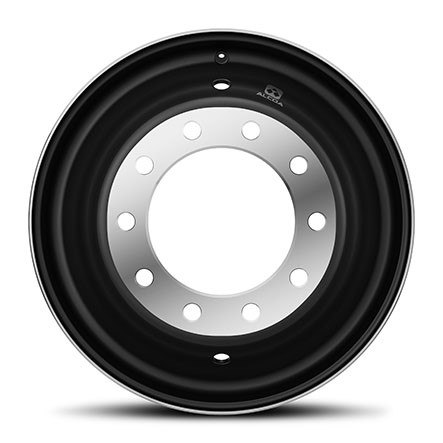

ULT36BLK Dura-Black
