25180x

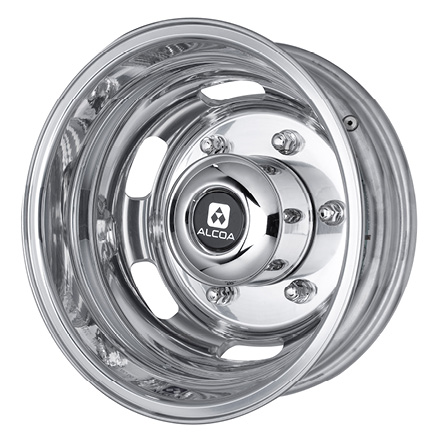

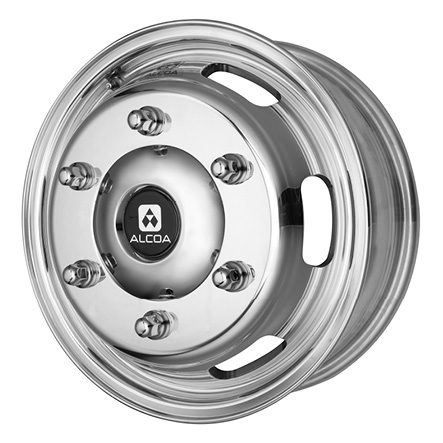

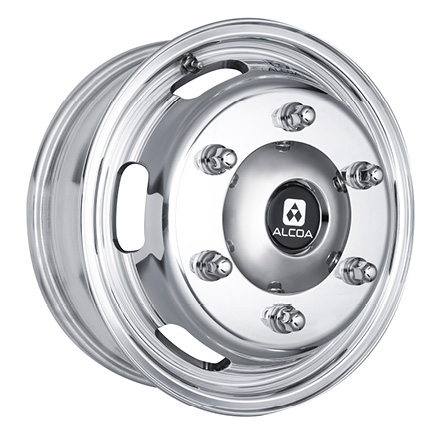

16" x 5.5J" - Hub Pilot - 205mm Bolt Circle
25180x

Alcoa® lightweight strength and durability from heavy duty forged aluminum wheels has been  reinvented and built for the Sprinter 3500.

Where To Buy
Specifications Measurement
Product Part Number 25180x
Wheel Size (in) 16" x 5.5J"
Mounting System Hub Pilot
Bolt Holes 6
Bolt Circle 205mm
Bolt Hole Diameter 16mm
Hub Bore 161.1mm
Approx. Weight (lbs) 16 lbs
Outset (in) 4.94"
Inset (in) 4.58"
Max Load (lbs) 2340 lbs
Max Cold Infl. (psi) 80 psi
Valve Stem 54MS00
Part Number Finish
251800 Brushed
251801DB Mirror Polish Outside Only with Dura-Bright
251802DB Mirror Polish Inside Only with Dura-Bright
Accessories and Mounting Hardware Part Number
Front Hub Cover
(Includes Nut Covers Where Applicable)
021135
Rear Hub Cover
(Includes Nut Covers Where Applicable)
022135
Nut Cover Only
(Not Intended to Secure Hub Covers)
000135
Alcoa® Mounting Hardware Kits See OEM

0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
See our Warranty page for more information

See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
