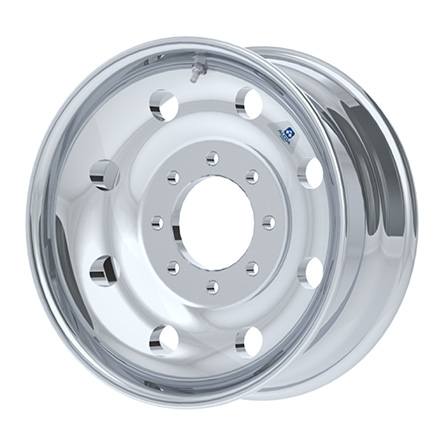

66140x
17.5" x 6.75" - Hub Pilot - 6.5" Bolt Circle
Bringing the best of big rig innovation to the medium duty aluminum wheels market. Ideal for car trailers, horse trailers, utility trailers and medium duty trucks applications.
| Specifications | Measurement |
| Product Part Number | 66140x |
| Wheel Size (in) | 17.5" x 6.75" |
| Mounting System | Hub Pilot |
| Bolt Holes | 8 |
| Bolt Circle | 6.5" |
| Bolt Hole Diameter | 0.68" |
| Hub Bore | 4.77" |
| Approx. Weight (lbs) | 30 lbs |
| Outset (in) | N/A" |
| Inset (in) | - |
| Max Load (lbs) | 6050 lbs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR552 |
| Part Number | Finish |
| 661401 | Mirror Polish Outside Only |
| Accessories and Mounting Hardware | Part Number |
| Front Hub Cover (Includes Nut Covers Where Applicable) |
001611, 001612 or 001681 |
| Rear Hub Cover (Includes Nut Covers Where Applicable) |
001611, 001612 or 001681 |
| Nut Cover Only (Not Intended to Secure Hub Covers) |
019001 |
| Alcoa® Mounting Hardware Kits | 139987, 139698 |
Related Documents
-
Dura-Bright® Wheels Cleaning Guide
301.70 KB
-
Dura-Bright® Brochure
2.11 MB
-
Medium Duty Data Sheet
247.79 KB
0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information
See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
