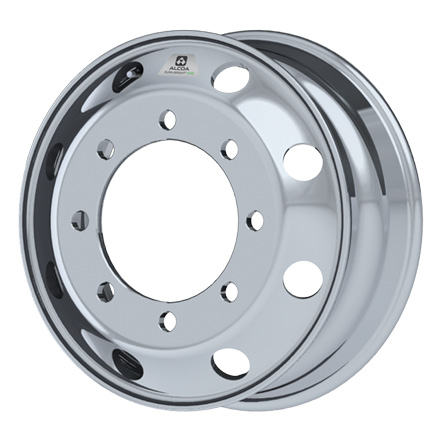

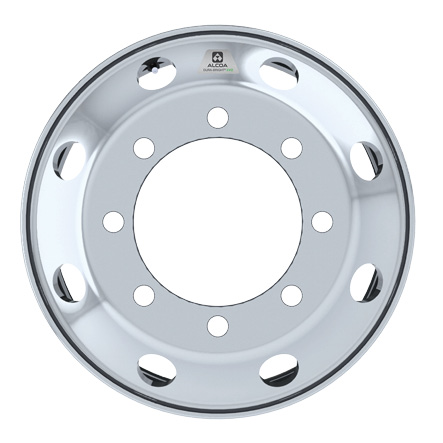

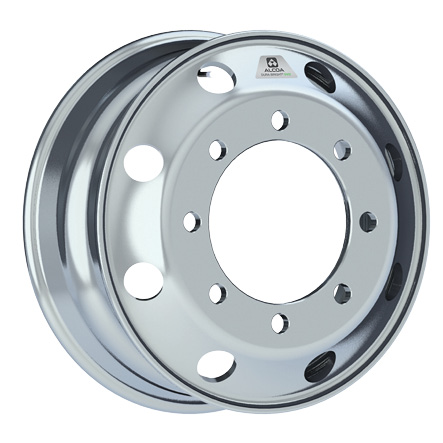

76543x

19.5" x 6.75RW" - Hub Pilot - 275mm Bolt Circle
76543x

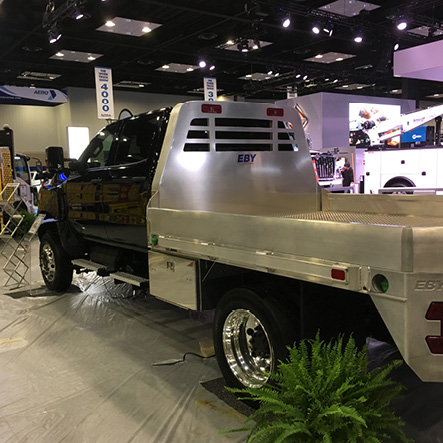

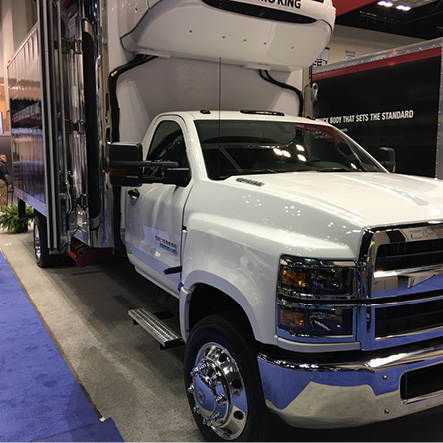

Bringing the best of big rig innovation to the medium duty aluminum wheels market. Ideal for Navistar CV and Chevrolet 4500/5500/6500 vehicle applications.

Where To Buy
Specifications Measurement
Product Part Number 76543x
Wheel Size (in) 19.5" x 6.75RW"
Mounting System Hub Pilot
Bolt Holes 8
Bolt Circle 275mm
Bolt Hole Diameter 26mm
Hub Bore 8.7"
Approx. Weight (lbs) 27 lbs
Outset (in) 5.8"
Inset (in) 5.1"
Max Load (lbs) 4190 lbs
Max Cold Infl. (psi) 120 psi
Valve Stem TR553C
Part Number Finish
765431DB Mirror Polish Outside Only Dura-Bright
765432DB Mirror Polish Inside Only with Dura-Bright
Accessories and Mounting Hardware Part Number
Front Hub Cover
(Includes Nut Covers Where Applicable)
0821221 2 (33mm kit)
Rear Hub Cover
(Includes Nut Covers Where Applicable)
0821331 2 (33mm kit)
Nut Cover Only
(Not Intended to Secure Hub Covers)
-
Alcoa® Mounting Hardware Kits -

0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
See our Warranty page for more information

See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
