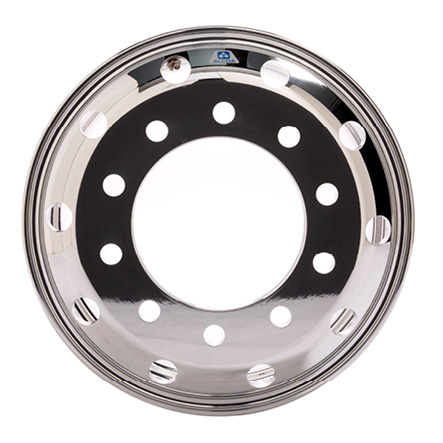

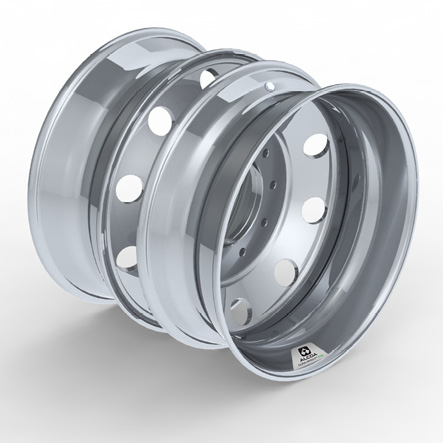

19.5" x 7.5RW" - Hub Pilot - 285.75mm Bolt Circle

Bringing the best of big rig innovation to the medium duty aluminum wheels market. Ideal for Hino, Peterbilt, Kenworth, COE, F-650/750 vehicle applications, Class B motorhomes, and trailers.

Where To Buy
Specifications Measurement
Product Part Number 77362x
Wheel Size (in) 19.5" x 7.5RW"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (lbs) 38 lbs
Outset (in) 6.1"
Inset (in) 5.23"
Max Load (lbs) 6700 lbs
Max Cold Infl. (psi) 130 psi
Valve Stem TR553C
Part Number Finish
773621 Mirror Polish Outside Only
773621DB Mirror Polish Outside Only with Dura-Bright
773622 Mirror Polish Inside Only
773622DB Mirror Polish Inside Only with Dura-Bright
773627 High Polish
Accessories and Mounting Hardware Part Number
Front Hub Cover
(Includes Nut Covers Where Applicable)
076188, 0761851, 088100S
Rear Hub Cover
(Includes Nut Covers Where Applicable)
077188, 0771851, 089100S
Nut Cover Only
(Not Intended to Secure Hub Covers)
Alcoa® Mounting Hardware Kits See OEM

0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
See our Warranty page for more information

See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
