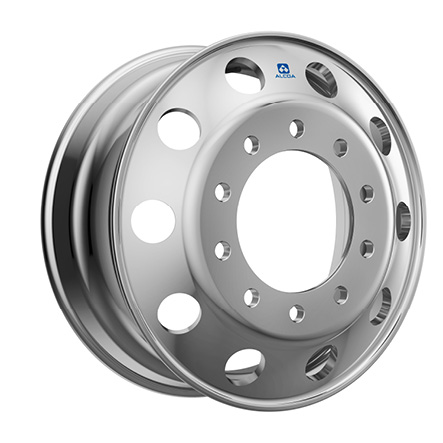

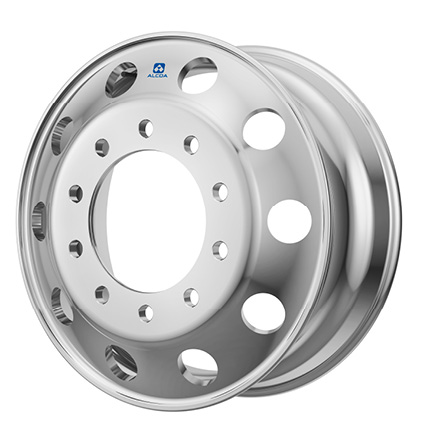

ULV39x

22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
ULV39x

Maintenance made easy. With a second valve stem the TPMS sensor can operate on one valve while air pressure is serviced on the other. The latest in advanced innovation, manufacturing and engineering, as well as one of the lightest forged aluminum truck wheels available on the market. Ideal for heavy-duty truck, trailer, and motorhome applications. It replaces 88V677.

Where To Buy
Specifications Measurement
Product Part Number ULV39x
Wheel Size (in) 22.5" x 8.25"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (lbs) 39 lbs
Outset (in) 6.6"
Inset (in) 5.80"
Max Load (lbs) 7400 lbs
Max Cold Infl. (psi) 130 psi
Valve Stem DUAL VALVE
TR553E x 2
Part Number Finish
ULV397 High Polish
Accessories and Mounting Hardware Part Number
Front Hub Cover
(Includes Nut Covers Where Applicable)
079100DT, 079300DT, 079500DT, 079200DT, 079400DT, 079600DT
Rear Hub Cover
(Includes Nut Covers Where Applicable)
086200DT (chrome one piece), 086300DT (black one piece), 085000DT (chrome multi), 085100 (black multi)
Nut Cover Only
(Not Intended to Secure Hub Covers)
001811, 001841
Alcoa® Mounting Hardware Kits -

Related Documents

0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
See our Warranty page for more information

See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
