22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
88067x
88067x

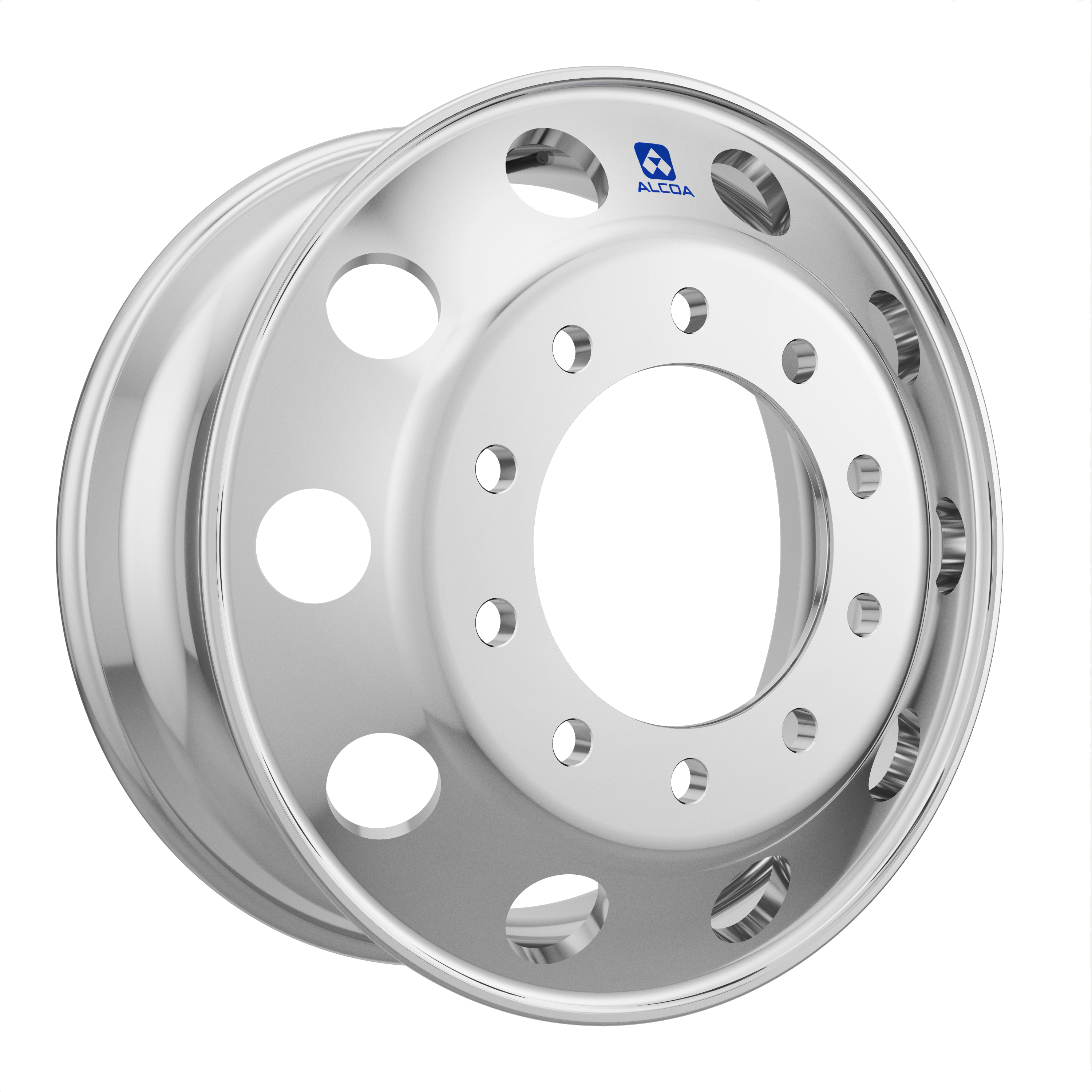

88167x_Chrome_01

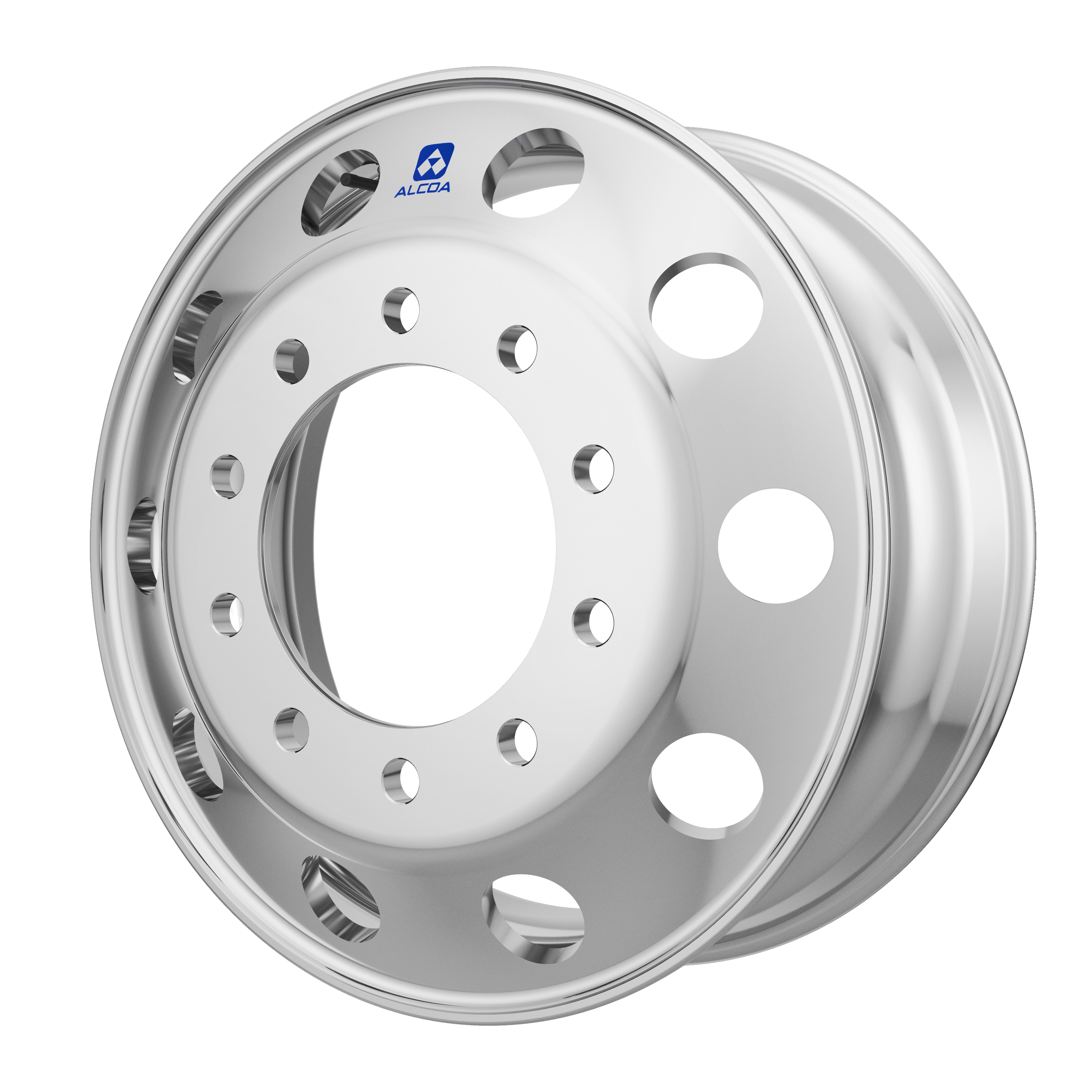

88167x_Chrome_03

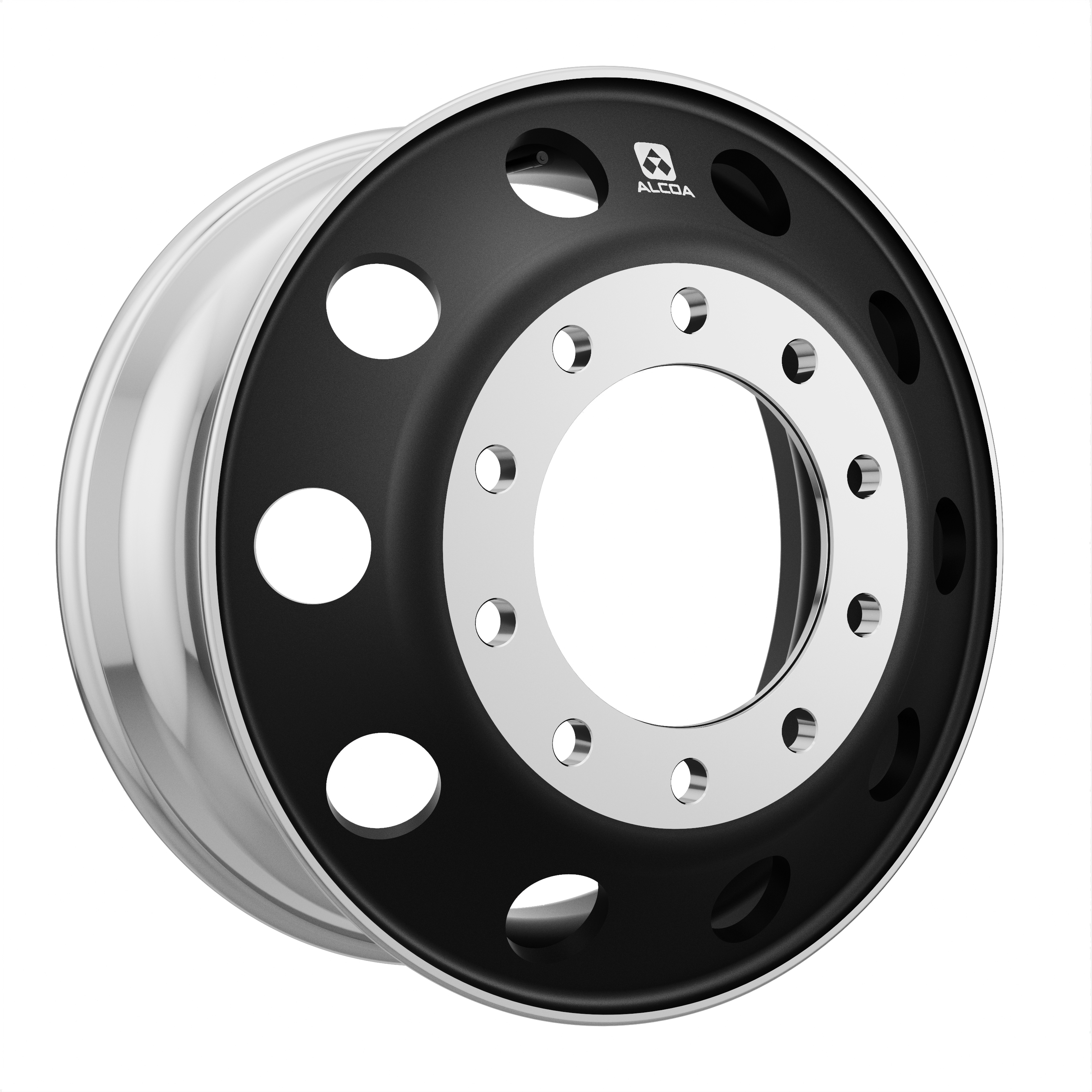

88167x_Black_01

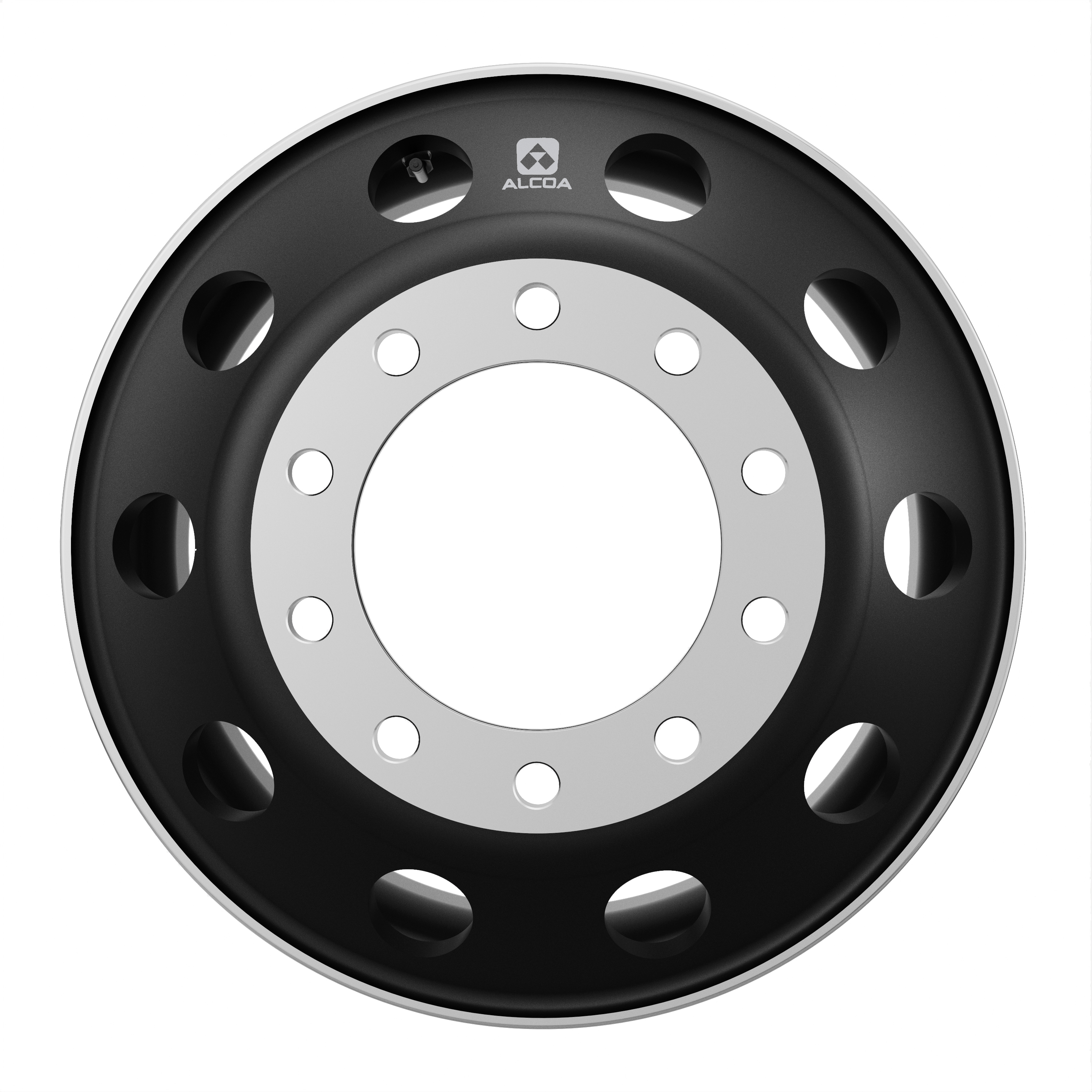

88167x_Black_02

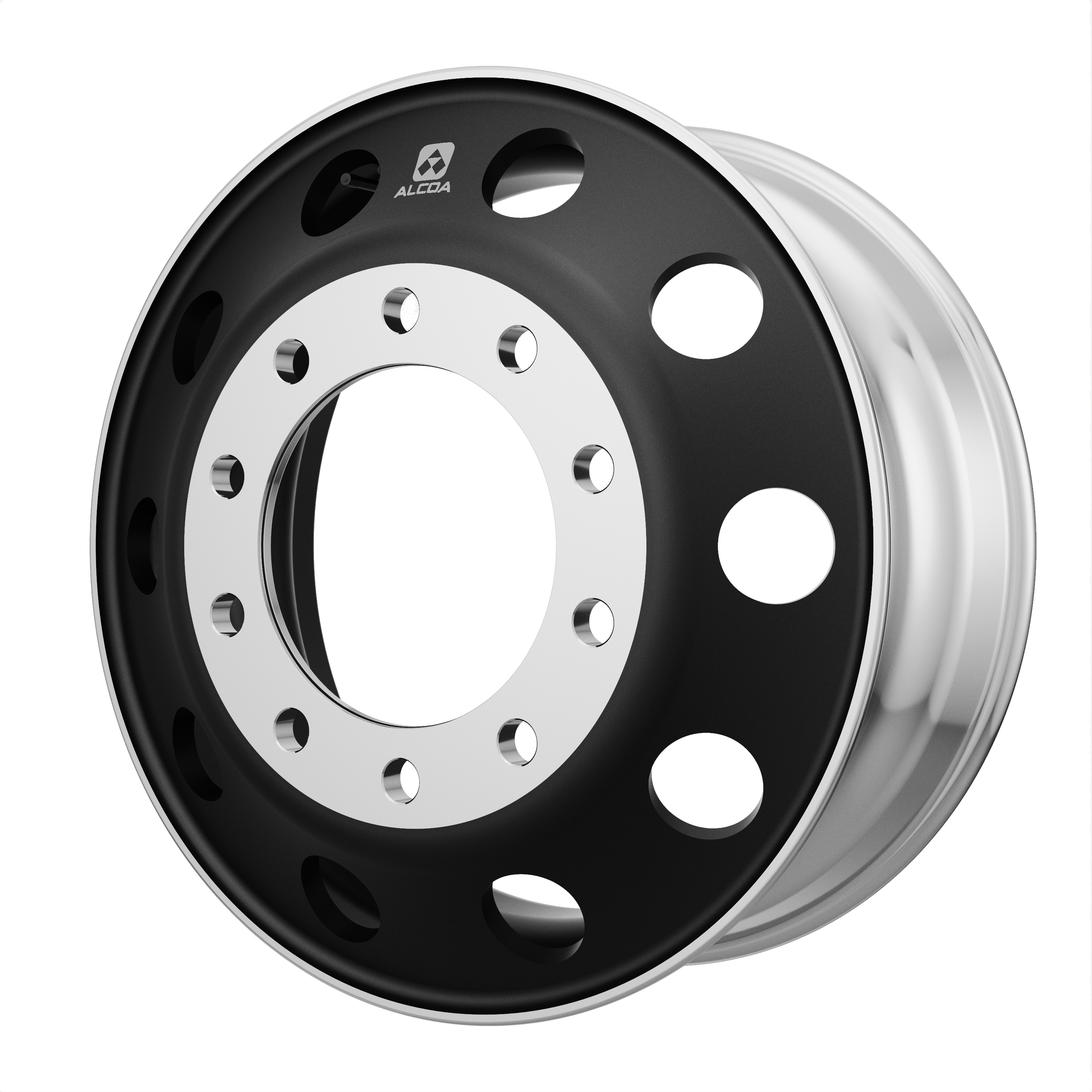

88167x_Black_03

Featuring Alcoa® Wheels’ proprietary MagnaForce® alloy, vHub™ Bore Technology, it is a lightweight champion. The latest in advanced innovation, manufacturing and engineering on the road. Ideal for heavy-duty truck, trailer, and motorhome applications.

warranty
Hub-Bore
Where To Buy
Specifications Measurement
Product Part Number 88067x
Wheel Size (in) 22.5" x 8.25"
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220.1mm
Approx. Weight (lbs) 39 lbs
Outset (in) 6.6"
Inset (in) 5.81"
Max Load (lbs) 7400 lbs
Max Cold Infl. (psi) 130 psi
Valve Stem TV554D
Part Number Finish
880671 Mirror Polish Outside Only
880672 Mirror Polish Inside Only
880673 Mirror Polish Both Sides
880677 High Polish
88067BLK Dura-Black™
880670DB Brushed with Dura-Bright
880671DB Mirror Polish Outside Only with Dura-Bright
880672DB Mirror Polish Inside Only with Dura-Bright
880673DB Mirror Polish Both Sides with Dura-Bright
Accessories and Mounting Hardware Part Number
Front Hub Cover
(Includes Nut Covers Where Applicable)		 079100DT, 079300DT, 079500DT, 079200DT, 079400DT, 079600DT
Rear Hub Cover
(Includes Nut Covers Where Applicable)		 -
Nut Cover Only
(Not Intended to Secure Hub Covers)		 N/A
Alcoa® Mounting Hardware Kits -

Related Documents

Where To Buy Email Results

0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information

See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
