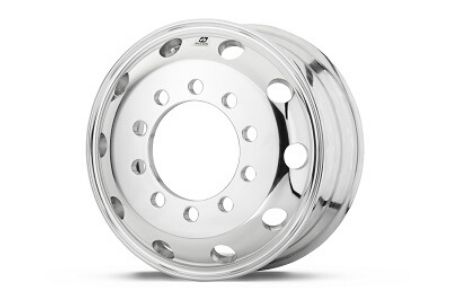

17.5x6.75 - Ball Seat - 222mm Bolt Circle
Specifications Measurement
Product Part Number 66371x
Wheel Size (in) 17.5x6.75
Mounting System Ball Seat
Bolt Holes 6
Bolt Circle 222mm
Bolt Hole Diameter 32mm
Hub Bore 164mm
Approx. Weight (kgs) 13.5 kgs
Outset (mm) 135.001 mm
Inset (mm) 116.4082 mm
Max Load (kgs) 2240 kgs
Max Cold Infl. (psi) 123 psi
Valve Stem TR553C
Part Number Finish
663713 Mirror Polished
