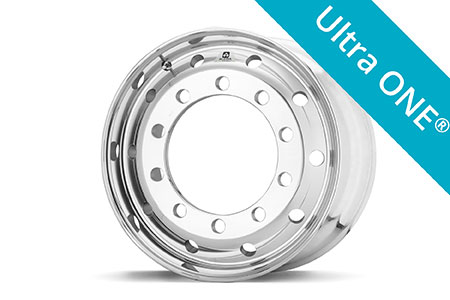

81U51x / 81U52x
22.5x11.75 - Hub Pilot - 335mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 81U51x|81U52x |
| Wheel Size (in) | 22.5x11.75 |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 335mm |
| Bolt Hole Diameter | 32|26mm |
| Hub Bore | 281mm |
| Approx. Weight (kgs) | 22.8|22.9 kgs |
| Outset (mm) | N/AP mm |
| Inset (mm) | 119.9896 mm |
| Max Load (kgs) | 5000 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | 54MS-00 |
| Part Number | Finish |
| 81U510 | Brushed |
| 81U511DB | Dura-Bright |
| 81U517 | LvL ONE |
| 81U520 | Brushed |
| 81U520DF | Dura-Flange |
| 81U521DB | Dura-Bright |
| 81U527 | LvL ONE |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
