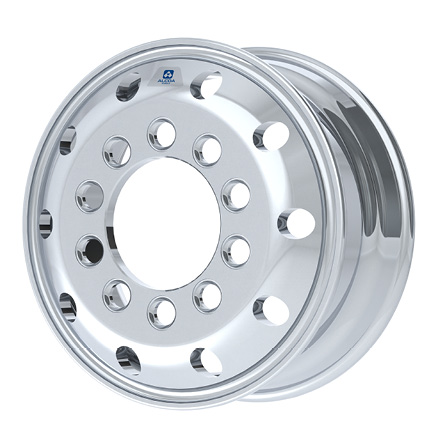

17.5" x 6.75" - Ball Seat - 8.75" Bolt Circle
Specifications Measurement
Product Part Number 66307x
Wheel Size (in) 17.5" x 6.75"
Mounting System Ball Seat
Bolt Holes 10
Bolt Circle 8.75"
Bolt Hole Diameter 1.22"
Hub Bore 6.50"
Approx. Weight (kgs) 14 kgs
Outset (mm) 140.97 mm
Inset (mm) 119.888 mm
Max Load (kgs) 2299 kgs
Max Cold Infl. (psi) 125 psi
Valve Stem TR553C
Part Number Finish
663072 Mirror Polish Inside Only
663077 LvL ONE

See our Warranty page for more information

Availability of the product may vary; please check with our team.
