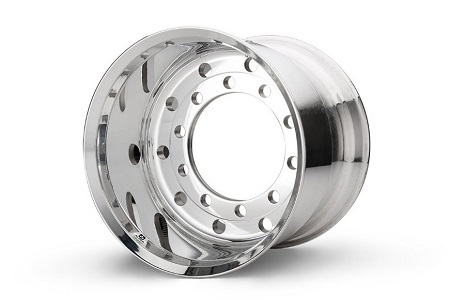

22.5x17.00 - Hub Pilot - 335mm Bolt Circle
Specifications Measurement
Product Part Number 84051X
Wheel Size (in) 22.5x17.00
Mounting System Hub Pilot
Bolt Holes 10
Bolt Circle 335mm
Bolt Hole Diameter 32mm
Hub Bore 281mm
Approx. Weight (kgs) 35.8 kgs
Outset (mm) -67.0052 mm
Inset (mm) N/A mm
Max Load (kgs) 5800 kgs
Max Cold Infl. (psi) 130 psi
Valve Stem N/A
Part Number Finish
840510 Brushed
840512DB Dura-Bright
