89U5xx
22.5" x 9" - Hub Pilot

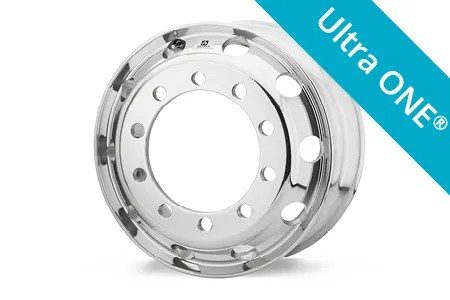

22.5×9.00, 155.5 offset (mm) Ultra ONE® ALCOA® WHEELS with an extended 4250 kg maximum load capacity are made of the proprietary MagnaForce® alloy technology allowing us to create lighter wheels without compromising on strength.
| Specifications | Measurement |
| Product Part Number | 89U510-89U520 |
| Wheel Size (in) | 22.5" x 9" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | - |
| Bolt Hole Diameter | 26-32 |
| Hub Bore | 281mm |
| Approx. Weight (kgs) | 22.9-23.0 kgs |
| Outset (mm) | 156 mm |
| Inset (mm) | - |
| Max Load (kgs) | 4250 kgs |
| Max Cold Infl. (psi) | - |
| Valve Stem | 70MS07N2 |
| Part Number | Finish |
| 89U510 | Brushed |
| 89U510DF | Dura-Flange® |
| 89U513DB | Dura-Bright® |
| 89U517 | LvL ONE® |
| 89U520 | Brushed |
| 89U520DF | Dura-Flange® |
| 89U523DB | Dura-Bright® |
| 89U527 | LvL ONE® |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
