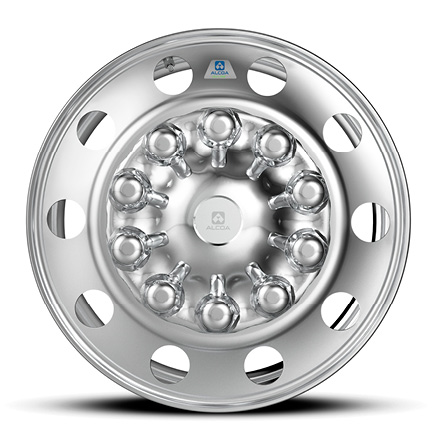

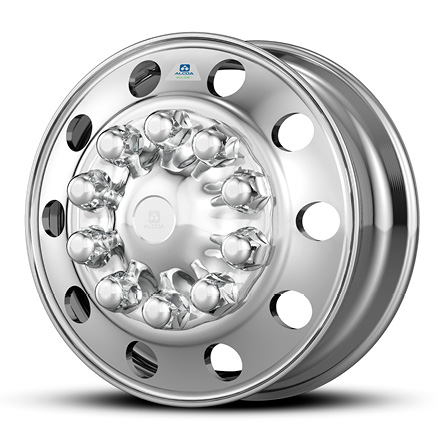

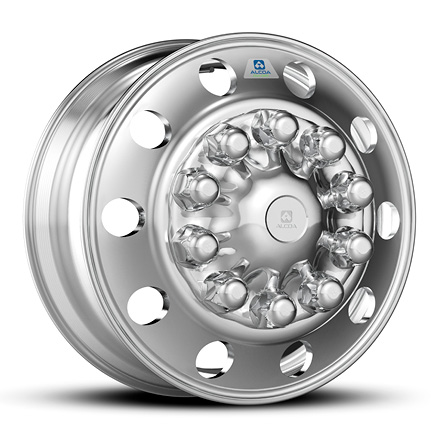

98U63x
24.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 98U63x |
| Wheel Size (in) | 24.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (kgs) | 23 kgs |
| Outset (mm) | 167.64 mm |
| Inset (mm) | 146.558 mm |
| Max Load (kgs) | 3356 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR555D |
| Part Number | Finish |
| 98U631DB | Mirror Polish Outside Only with Dura-Bright |
| 98U630DB | Brushed with Dura-Bright |
| 98U631 | Mirror Polish Outside Only |
| 98U632 | Mirror Polish Inside Only |
| 98U632DB | Mirror Polish Inside Only with Dura-Bright |
| 98U637 | LvL ONE |
| 98U637DF | LvL ONE with Dura-Flange |
| 98U63BLK | Dura-Black |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
