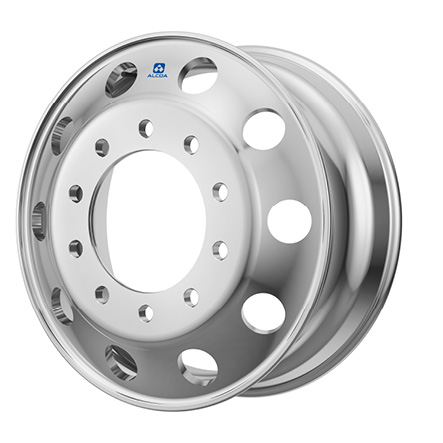

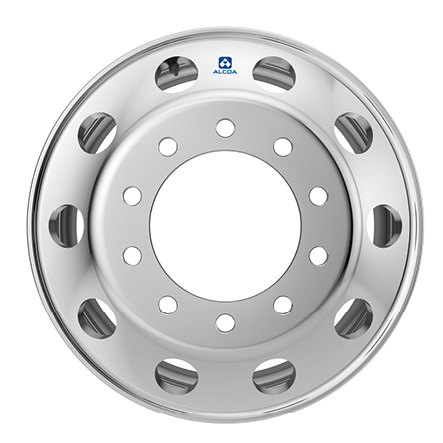

ULA18x
22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
The exclusive ULA18x is lightweight – 18KG. and comes with vHub™ Bore Technology, which minimises hub-to-wheel contact area to reduce corrosion.

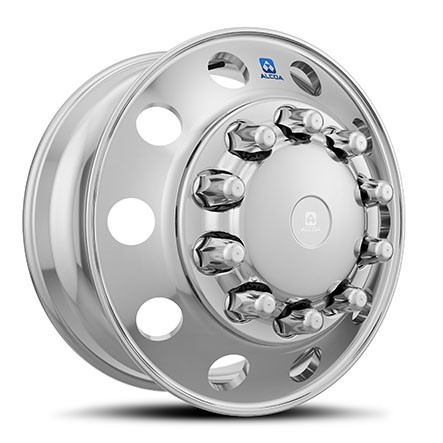

It features a proprietary flange groove, which allows for an easy installation of the Alcoa® Aerodynamic Drive Cover. Combined with the Alcoa® Aerodynamic Steer Cover, the complete system maximizes fuel savings on the road.
| Specifications | Measurement |
| Product Part Number | ULA18x |
| Wheel Size (in) | 22.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (kgs) | 18 kgs |
| Outset (mm) | 167.64 mm |
| Inset (mm) | 147.574 mm |
| Max Load (kgs) | 3356 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR554D |
| Part Number | Finish |
| ULA183 | Mirror Polish Both Sides |
| ULA183DB | Mirror Polish Both Sides with Dura-Bright |
| ULA180DB | Brushed with Dura-Bright |
| ULA181 | Mirror Polish Outside Only |
| ULA181DB | Mirror Polish Outside Only with Dura-Bright |
| ULA182 | Mirror Polish Inside Only |
| ULA182DB | Mirror Polish Inside Only with Dura-Bright |
| ULA187 | LvL ONE |

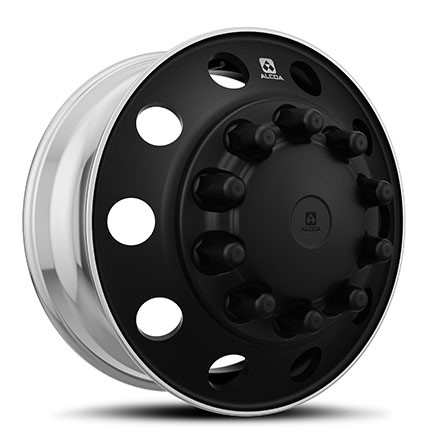

| ULA18BLK | Dura-Black |
Related Documents
-
Alcoa ULT18x - 22.5" x 8.25"
5.55 MB
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
